AntiStatic Supplies

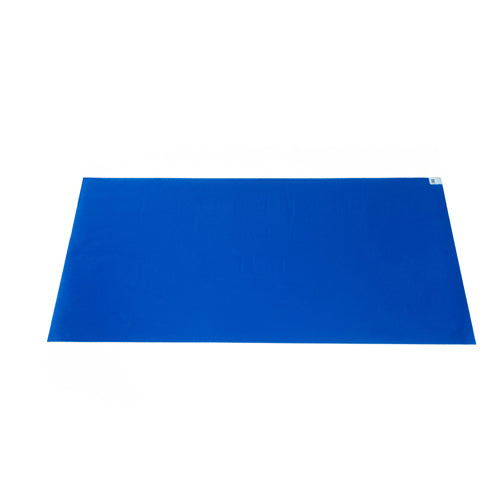

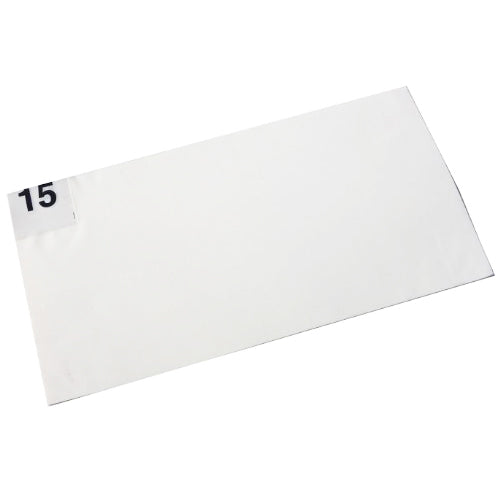

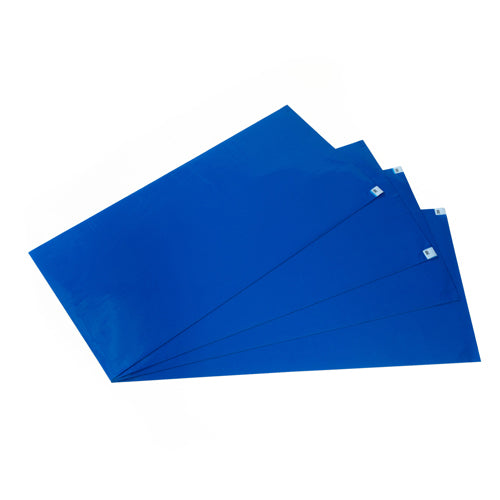

ESD Cleanroom Sticky Mats

ESD Cleanroom Sticky Mats

Regular price $61.00 USD
Regular price Sale price $61.00 USD
Sale Sold out

ESD Cleanroom Sticky Mats are multi-layered clean-film full adhesive layered mats that effectively capture dirt and dust from foot traffic and equipment wheels before workers enter the controlled environment. Each of the numbered layers of the mat peels off easily to reveal a new clean surface. These mats represent the most effective particle reducing system for significantly reducing traffic-borne contaminants, removing up to 95% of particles at a .30 micron range. An acrylic adhesive is used, which does not support microbial growth.



Applications: Cleanroom, Pharmaceutical Facilities, Medical Labs, Surgical Rooms, Micro-electronics, and Printing Facilities.



Custom sizes are available upon request.





Color
Blue, White
Pad Thickness
1.8 mil/50 Micron Low Density Polyethylene (LDPE)
Ability Of Dust Removal
95% at 0.3-micron range
Tensile
>170kg/cm2
Elongation
>250%
Adhesive Thickness
0.03MIL /8 Micron
Adhesive Force
650/800 g/25mm ± 100
Adhesive Type
Acrylic
Peel Adhesion: Individual Layer
6.5 oz/180g/25mm ± 20
Peel Adhesion: Bottom Layer 25 oz/700g/25mm ± 50





Technical Datasheet:
