Anti-Static General Purpose Mat Rolls
Anti-Static General Purpose Mat Rolls

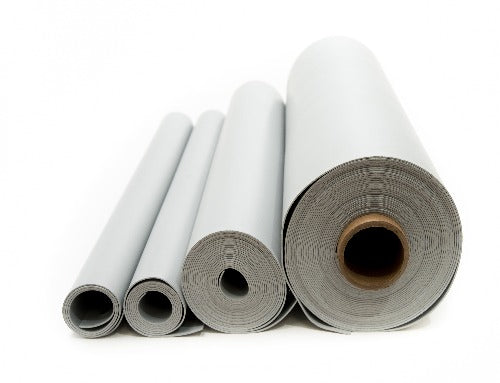

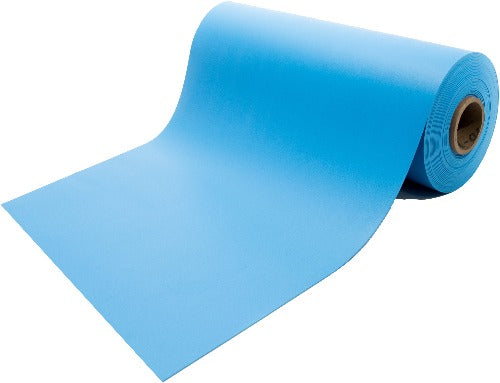

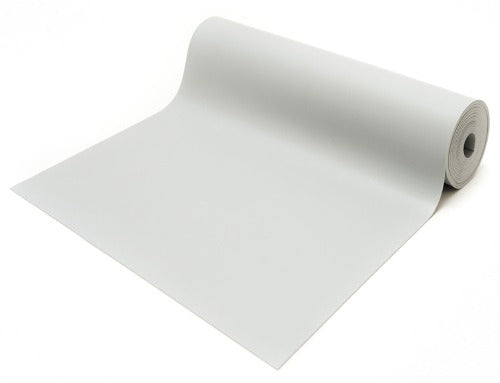

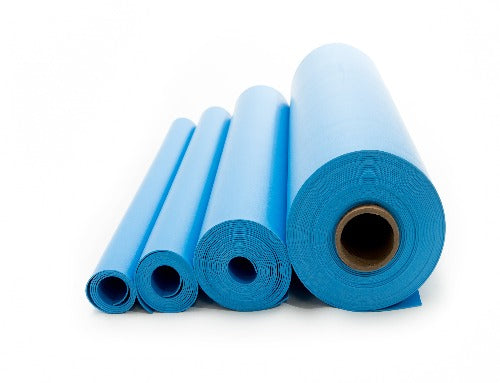

Anti-Static General Purpose Mats are made of a single layer homogenous polymer mix with ESD properties. They have a light texture and are designed to provide a static safe work surface to protect static sensitive devices. They are low cost, durable, easy to cut, and are reversible. Service temperature is -20 degrees F to 160 degrees F. They are available in 2 foot, 2.5 foot, 3 foot, and 4 foot widths. A standard roll is 50 feet long. These anti-static mats are also known as ESD Table Top Mats or ESD Worksurface Mats.
Custom sizes are available upon request.Applications: Aerospace, Computer Assembly, Computer Technicians, Data Centers, Electronic Assembly, Fiber Optics Manufacturing, Hospitals, Life Science Industry, and Solar Industry
Part Number | 1059 Series |
---|---|
Color | Blue or Gray |
Brand Name | Bertech |
Material Type | Anti-Static Safe Polymer Mix |
Thickness | 0.094"±0.010" ; 3/32" |
UNSPSC Code | 46182105 |
Surface Resistivity | 10e9 - 10e10 |
---|---|
Available Widths | 2 ft., 2.5 ft., 3 ft., and 4 ft. |
Standard roll length | 50 feet |
Tensile Strength | 900 lbs./in.² |
Elongation | 160% |
Tear | 160 lbs./in. |
