Anti Static Supplies
Anti-Static Vinyl Mat Rolls
Anti-Static Vinyl Mat Rolls
Couldn't load pickup availability

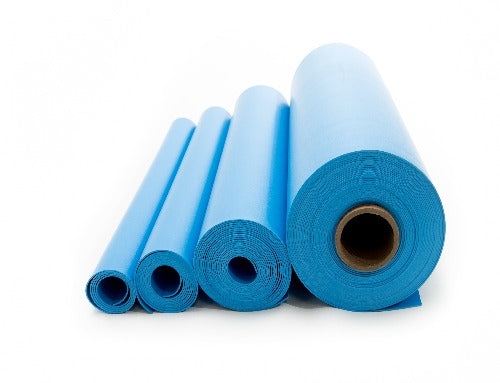

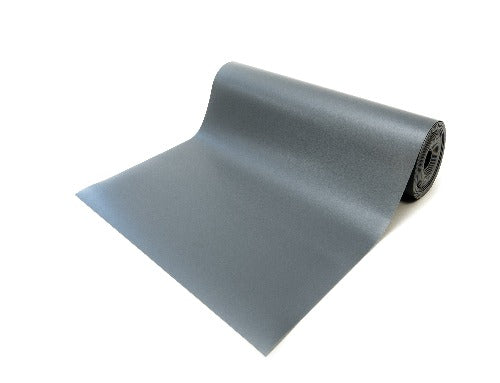

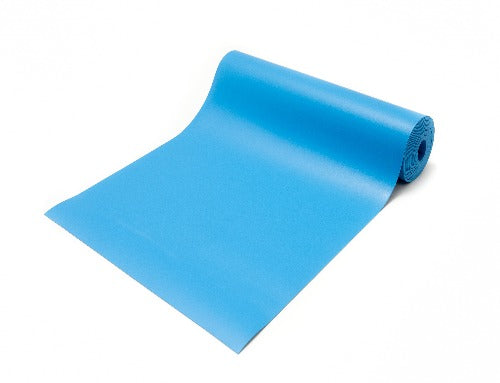

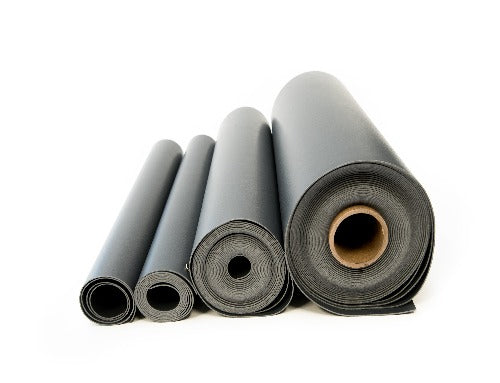

Anti-Static Vinyl Mats are made in the USA. They are made from a homogeneous solid vinyl material with a buried conductive layer between two layers. A standard roll is 50 feet long. These anti-static mats are ideal for static dissipative and flexible work surfaces required for static sensitive devices. These Anti-Static vinyl mats are considered to be our highest quality mats and the best at maintaining an Anti-Static Safe environment. Suggested service temperature is from -20 degrees F to 160 degrees F. They are also known as Anti-Static Three Layer Mats.
Custom sizes are available upon request.
Applications: Aerospace, Computer Assembly, Computer Technicians, Data Centers, Electronic Assembly, Fiber Optics Manufacturing, Life Science Industry, Soldering in a High Temperature Setting, and Solar Industry
| Part Number | 3059 Series |
|---|---|
| Color | Blue or Gray |
| Brand Name | Bertech |
| Material Type | Anti-Static Safe Vinyl |
| Thickness | 0.094′′ ± 0.010′′; 3 /32′′ |
| UNSPSC Code | 46182105 |
| Surface Resistivity | 3.0x10e7 - 9.5x10e8 ohms/sq. |
|---|---|
| Available Widths | 2', 2.5' and 3' |
| Standard roll length | 50 feet |
| Tensile Strength | 900 lbs./in.² minimum |
| Elongation | 125% minimum |
| Tear | 150 lbs./in. minimum |
Technical Datasheet:
